การติดตั้ง ismartgate
กับมอเตอร์ประตูรั้ว

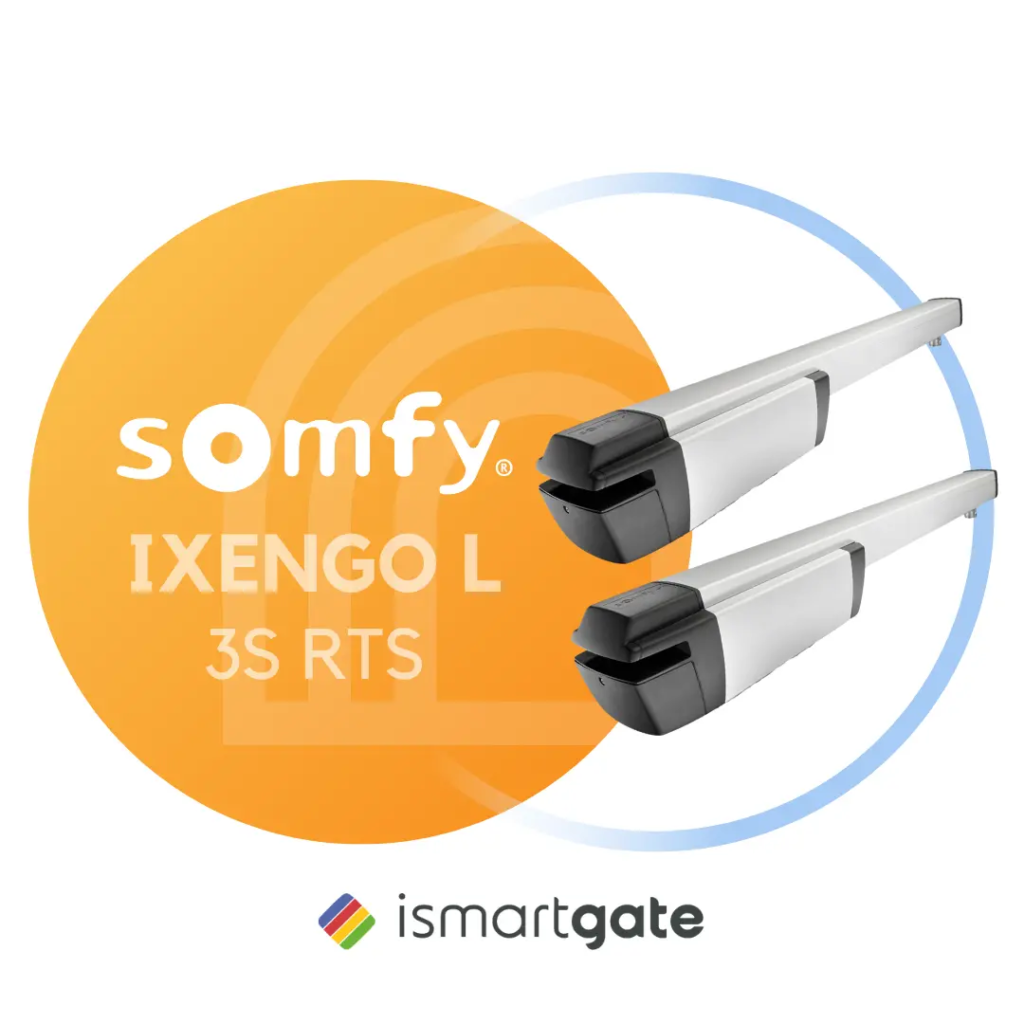

Somfy Ixengo L 3S RTS
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=606,h=484,fit=crop/mP4ZvE66JKIRzL0K/isg_connections_diagram_update-2-mv0xRo58B4HpowNe.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=262,fit=crop/mP4ZvE66JKIRzL0K/isg_connections_diagram_update-2-mv0xRo58B4HpowNe.png)
วิธีติดตั้ง

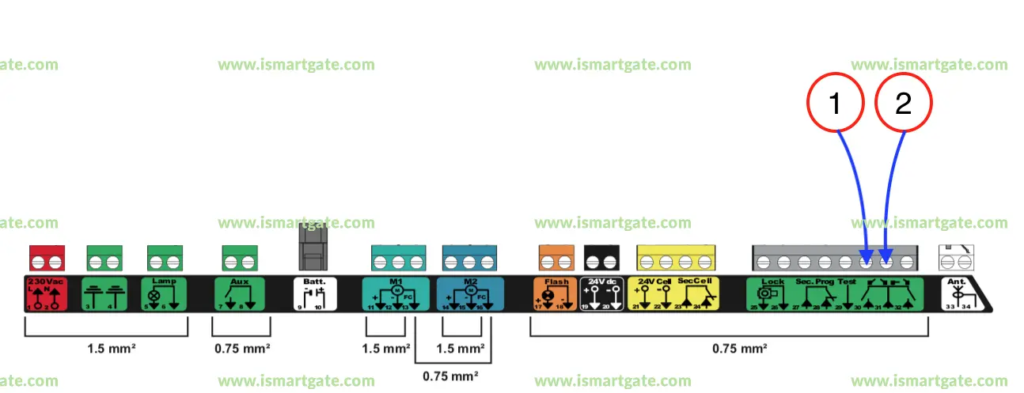

ตรวจสอบแผนภาพการเดินสายสำหรับมอเตอร์ Somfy Ixengo L 3S RTS ด้านล่าง
สอดสายไฟ (มีในชุด) ตามแผนภาพ แล้วใช้ไขควงขันให้แน่น
ในการจ่ายไฟให้อุปกรณ์ ismartgate สามารถใช้ชุดอุปกรณ์จ่ายไฟ dc/dc converter หรือทำเต้ารับสำหรับนำอแดปเตอร์ของ ismartgate มาเสียบก็ได้โดยเดินสายจากช่องจ่ายไฟของบอร์ดควบคุมมอเตอร์ก็ได้
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=709,h=272,fit=crop/mP4ZvE66JKIRzL0K/img_43_ixengo_l_3s_rts-Aq20Rk4QxkswV7rk.png)
![](https://assets.zyrosite.com/cdn-cgi/image/format=auto,w=328,h=147,fit=crop/mP4ZvE66JKIRzL0K/img_43_ixengo_l_3s_rts-Aq20Rk4QxkswV7rk.png)
